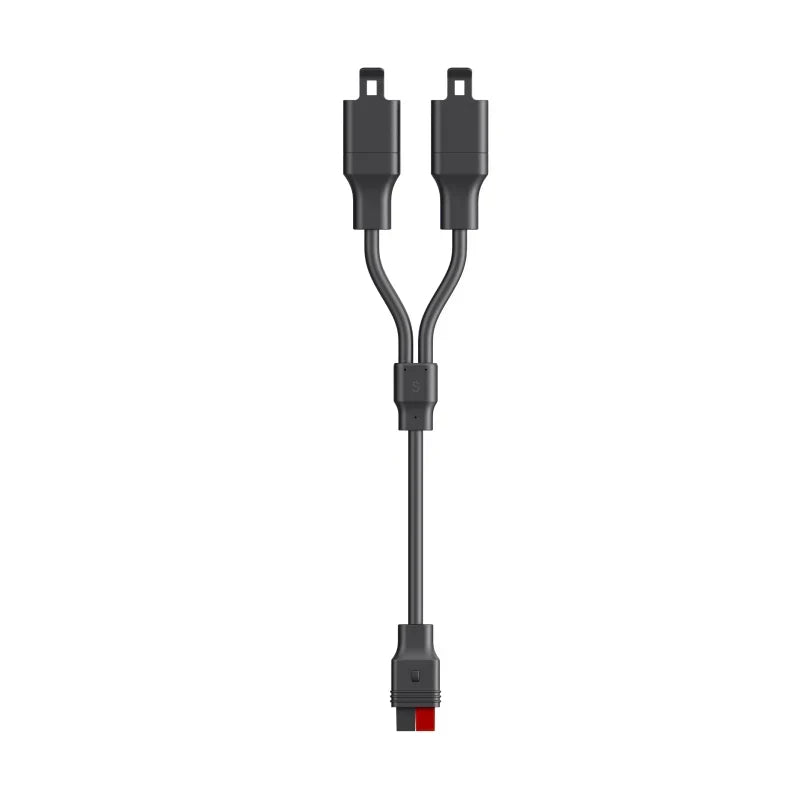

Jackery Anderson Y Parellel Connector

Amperage Booster | High-Speed Solar Charging | 100 Prime & 500X Compatible

Double Your Charging Current The Jackery Anderson Y Parallel Connector is designed for high-performance solar setups. While a series connection increases "pressure" (voltage), a Parallel connection increases "flow" (amperage). This is the ideal configuration for most portable power stations, as it keeps the voltage within the safe operating range while allowing the battery to pull twice as much power from the sun.

Why Choose the Parallel Connector?

• Faster Recharging: By combining the current of two SolarSaga 100 Prime or 500X panels, you cut your charging time in half.
• Partial Shade Performance: In a parallel circuit, if one panel is partially shaded, the other continues to provide full power. This makes it more reliable for camping in wooded areas or variable conditions.
• Error-Proof Connectivity: The keyed Anderson heads are "gender-specific," meaning they can only be plugged in the correct way. This protects your equipment from reverse-polarity damage.
• Industrial Build: Built with heavy-duty, weather-resistant insulation to handle high-current throughput without overheating.

Specifications

Jackery SolarSaga 100 Prime Installation Guide

Feature	Specification
Connector Type	Industrial Anderson (Parallel Logic)
Compatibility	SolarSaga 100 Prime / SolarSaga 500X
Cable Length	7.5 Inches
Circuit Logic	Positive-to-Positive / Negative-to-Negative
Housing Material	Fire-retardant, Weather-sealed
Operating Temp	-40°F to 185°F (-40°C to 85°C)
Warranty	5 Years (3 Standard + 2 Extended)

FAQs

The Jackery Anderson Y Parallel Connector is the essential tool for users who want to maximize their solar charging speed without increasing system voltage. By linking two panels in Parallel, you double the current (Amps) flowing into your power station, allowing for significantly faster recharges even on days with fluctuating sunlight.

---

Jackery Anderson Y Parallel Connector

Amperage Booster | High-Speed Solar Charging | 100 Prime & 500X Compatible

[Tab 1: Overview]

Double Your Charging Current

The Jackery Anderson Y Parallel Connector is designed for high-performance solar setups. While a series connection increases "pressure" (voltage), a Parallel connection increases "flow" (amperage). This is the ideal configuration for most portable power stations, as it keeps the voltage within the safe operating range while allowing the battery to pull twice as much power from the sun.

Why Choose the Parallel Connector?

• Faster Recharging: By combining the current of two SolarSaga 100 Prime or 500X panels, you cut your charging time in half.

• Partial Shade Performance: In a parallel circuit, if one panel is partially shaded, the other continues to provide full power. This makes it more reliable for camping in wooded areas or variable conditions.

• Error-Proof Connectivity: The keyed Anderson heads are "gender-specific," meaning they can only be plugged in the correct way. This protects your equipment from reverse-polarity damage.

• Industrial Build: Built with heavy-duty, weather-resistant insulation to handle high-current throughput without overheating.

---

[Tab 2: Specifications]

Technical Performance

Engineered for maximum conductivity and safety in permanent or portable DIY setups.

Feature	Specification
Connector Type	Industrial Anderson (Parallel Logic)
Compatibility	SolarSaga 100 Prime / SolarSaga 500X
Cable Length	7.5 Inches
Circuit Logic	Positive-to-Positive / Negative-to-Negative
Housing Material	Fire-retardant, Weather-sealed
Operating Temp	-40°F to 185°F (-40°C to 85°C)
Warranty	5 Years (3 Standard + 2 Extended)

---

[Tab 3: FAQs & Safety]

• What is the difference between this and the Series (Y) Connector? The Parallel Connector increases Current (Amps) while the Voltage stays the same. This is the "standard" way to link two Jackery panels for the fastest safe charge.
• Do I need a Parallel Connector for expansion batteries? No. This connector is only for linking Solar Panels. Expansion batteries (like the BP2000 Plus) use a different, dedicated expansion cable.
• Can I link two different sized panels? For the best results and safety, we recommend only linking two identical panels (e.g., two SolarSaga 100 Prime units) to ensure the voltage remains balanced.
• Does it click into place? Yes. Like all Jackery Anderson products, it is designed with a "Click-Lock" system. If you don't hear the click, the connection is not weather-sealed.
• How many can I use at once? You can use one Y-Parallel connector to link two panels. If you wish to link four panels, you would use three Y-Parallel connectors in a "tree" configuration.

⚠️ System Compatibility Note: While parallel connections keep your voltage stable, always ensure your total array configuration does not exceed the 120V Max Input of your Jackery Power Station. Using official Jackery Anderson Y-Connectors ensures your system remains balanced and safe for high-speed charging.

Visual Setup

Setup Instructions:

1. Connect the Positive lead of Panel A and Panel B to the corresponding ports on the first Y-connector.
2. Connect the Negative lead of Panel A and Panel B to the second Y-connector.
3. Plug the combined output into your Jackery Anderson Extension Cable.
4. Listen for the "Click" to confirm the circuit is closed and the weather-sealing is engaged.

Enhance your energy setup with ease and precision using these essential connectors

When you need to boost your system's voltage or current, the Jackery Anderson Y Parallel Connector and Jackery Anderson Y Series Connector are your go-to solutions. Designed exclusively for the Jackery 100 Prime, these connectors offer seamless and reliable connectivity. Simply attach the male head of the solar panel to the corresponding female head of the connector. Once you hear the satisfying "click" of the Anderson Connector, you can be confident that your connection is secure.

Applicable models: Explorer 600 Plus/ Explorer 1000 V2

A single DC input port supports a maximum of 2 SolarSaga 100 Prime panels in series. The Explorer 600 Plus supports up to 2 SolarSaga 100 Prime panels, and the Explorer 1000 V2 supports up to 4 SolarSaga 100 Prime panels. The connection diagram is as follows:

Applicable model: Explorer 1500

A single DC input port supports a maximum of 2 SolarSaga 100 Prime panels in parallel. The Explorer 1500 supports up to 4 SolarSaga 100 Prime panels. The connection diagram is as follows:

Applicable model: Explorer 1000 Plus

A single DC input port supports a maximum of four SolarSaga 100 Prime panels in a series–parallel combination. The Explorer 1000 Plus supports up to eight SolarSaga 100 Prime panels. The connection diagram is as follows:

Applicable models: Explorer 2000 Plus/Explorer 2000 Pro/Explorer 3000 Pro

A single DC input port supports a maximum of 6 SolarSaga 100 Prime panels in series and parallel combination. The Explorer 2000 Plus/Explorer 2000 Pro/Explorer 3000 Pro supports up to 12 SolarSaga 100 Prime panels. The connection diagram is as follows:
