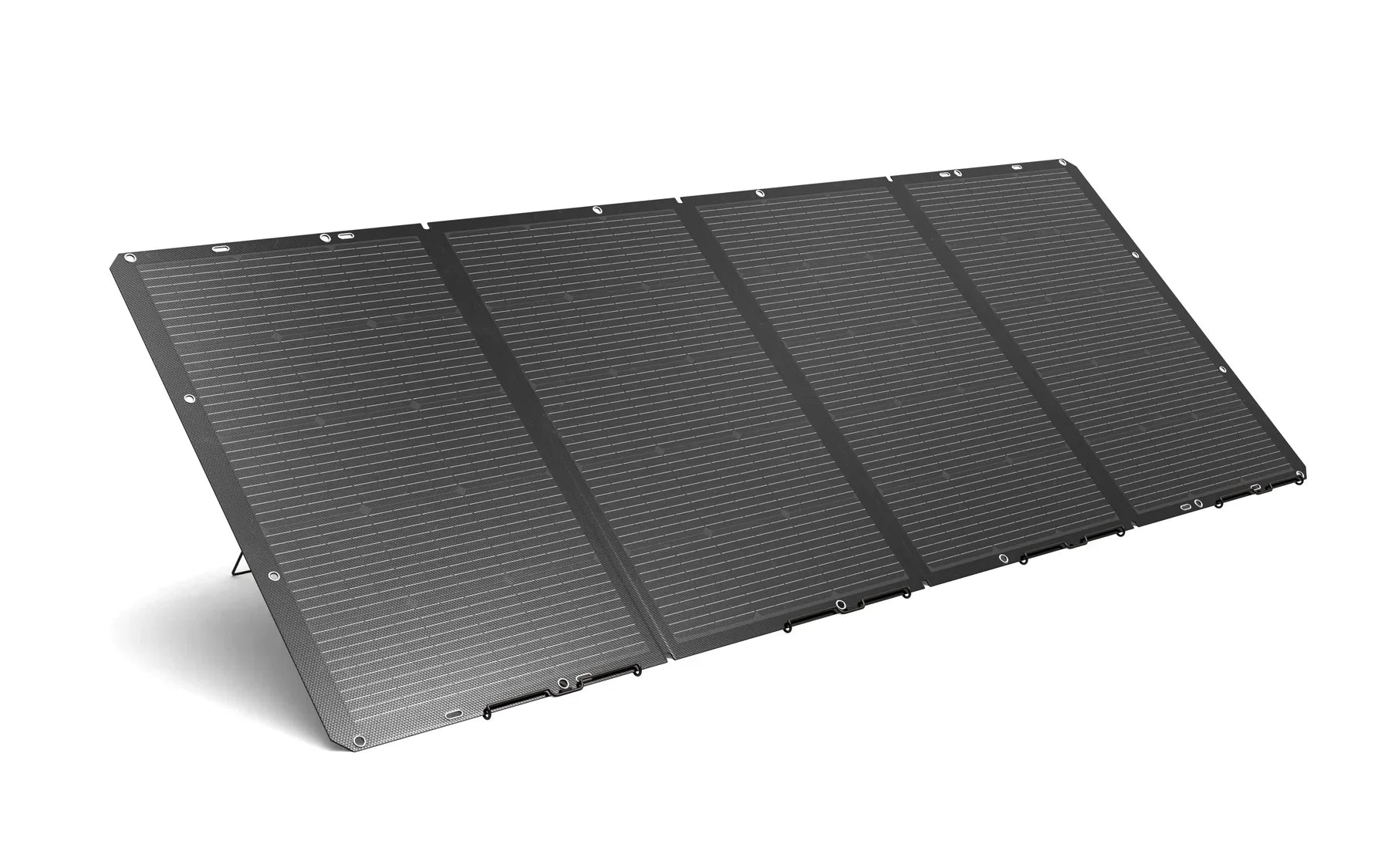

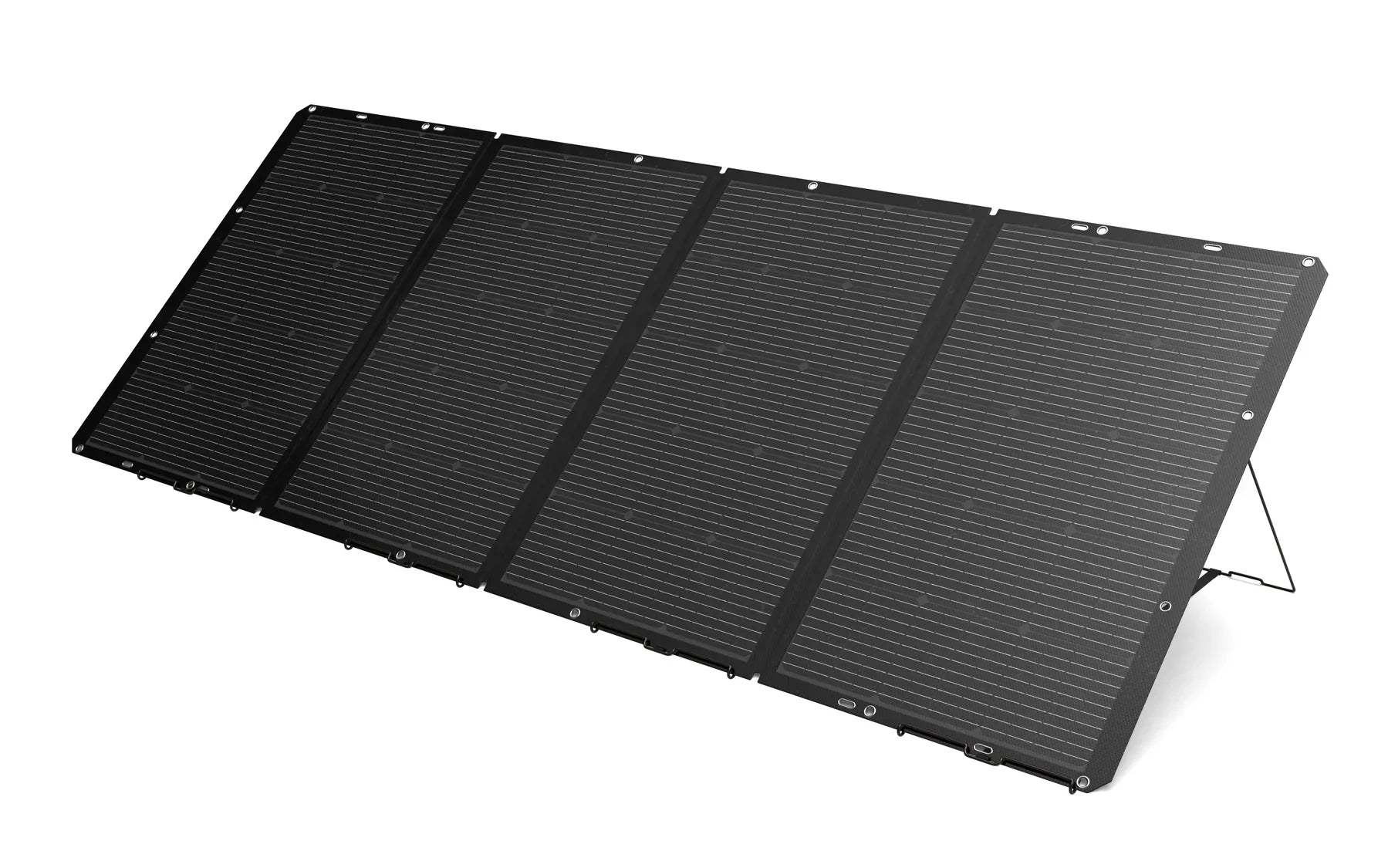

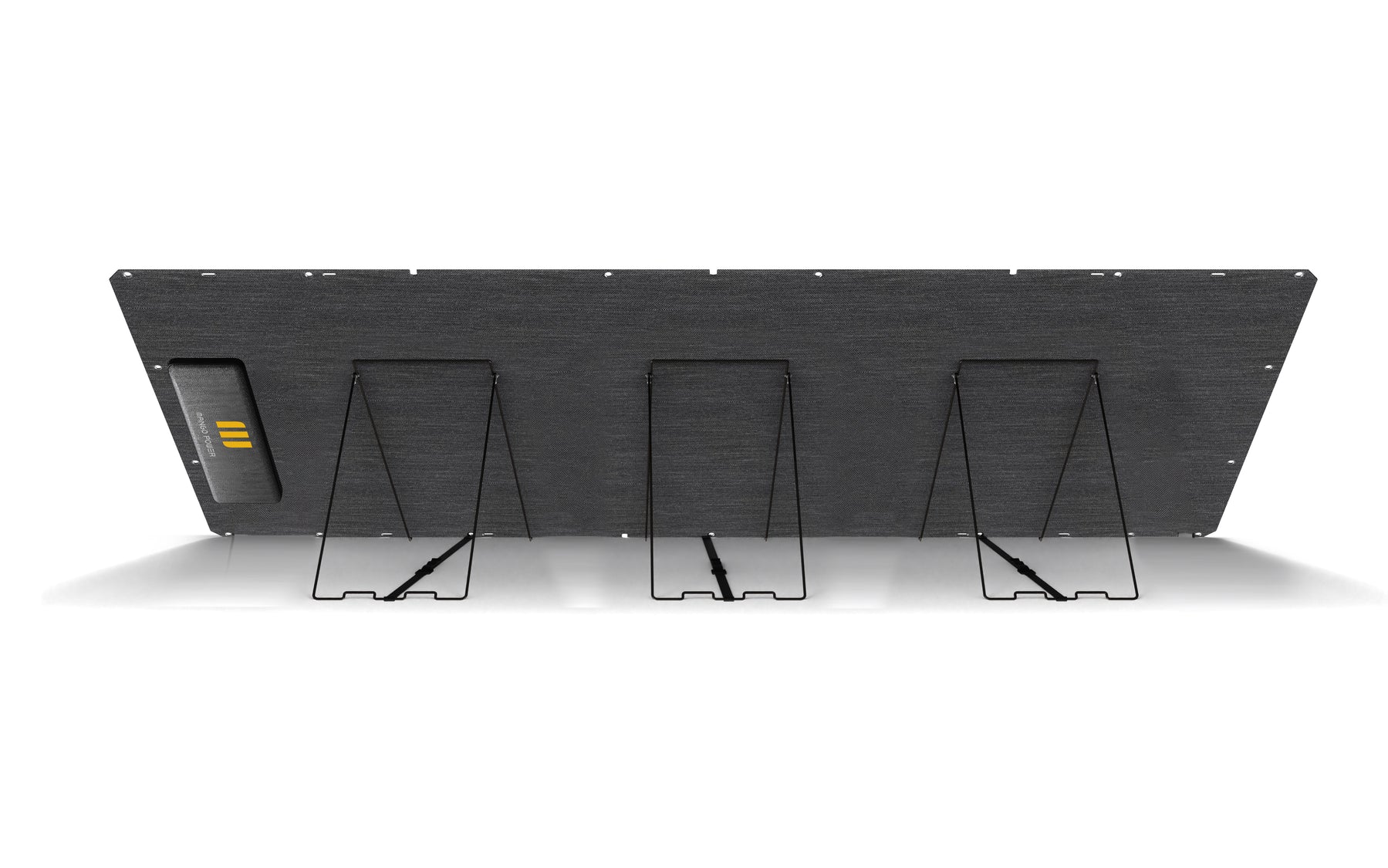

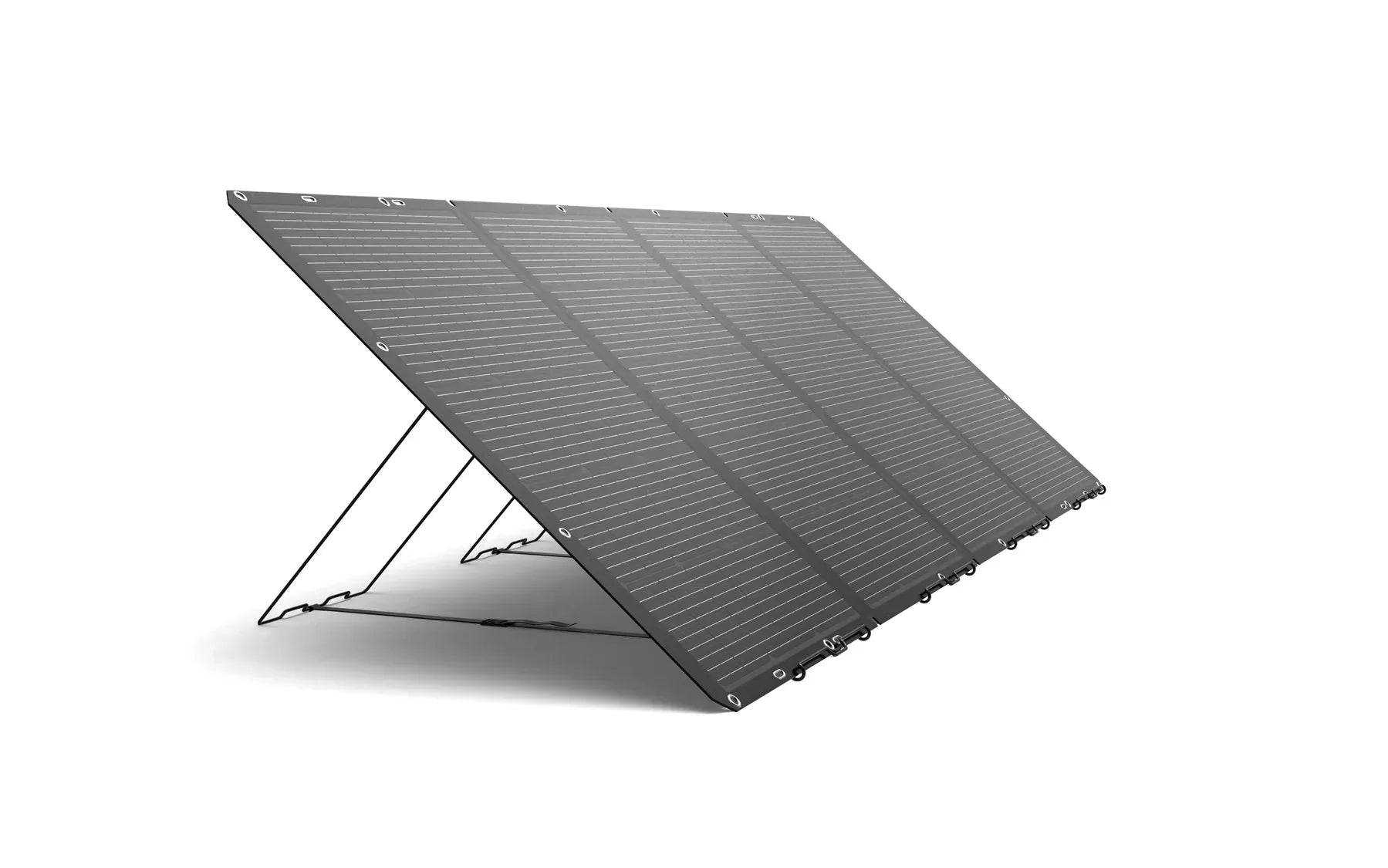

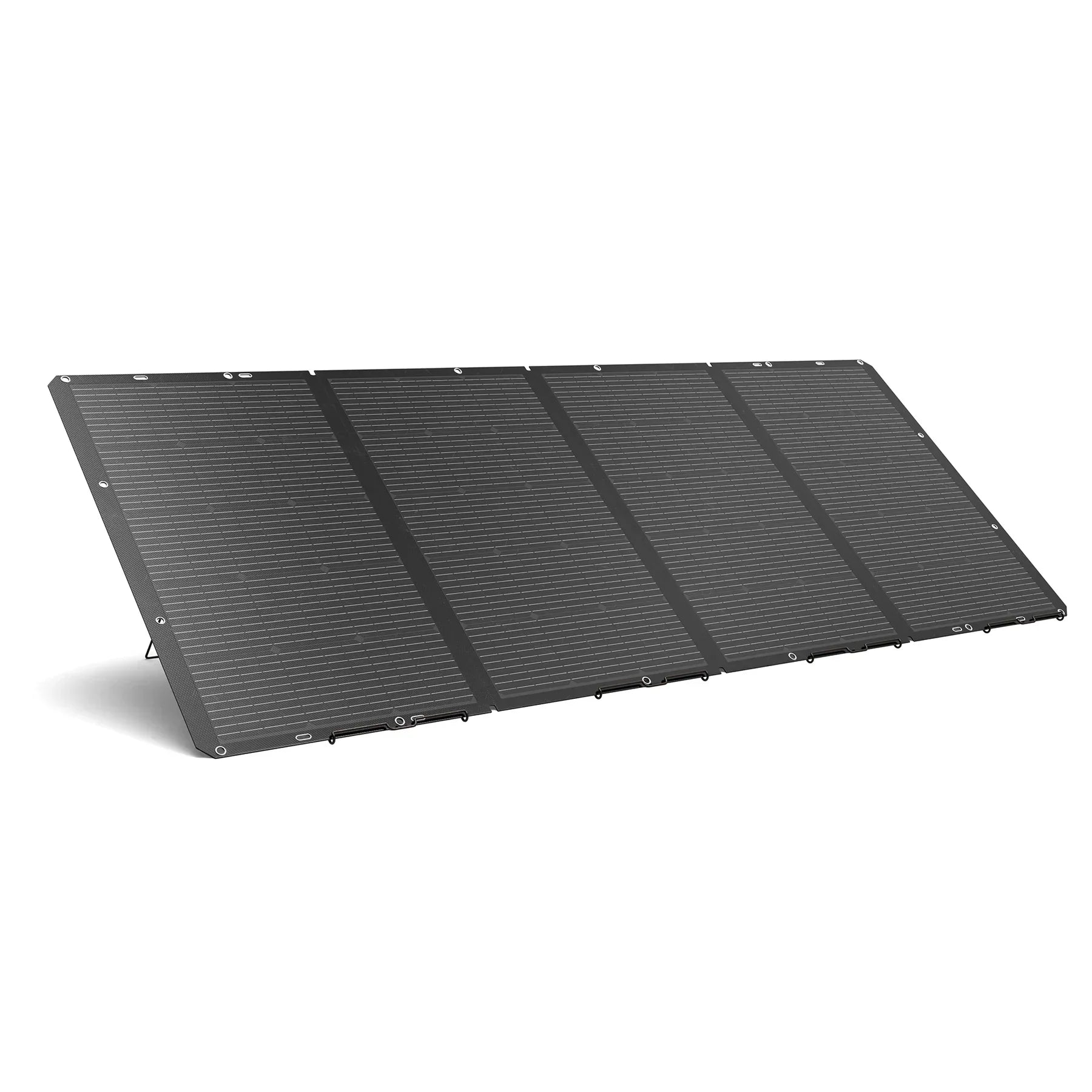

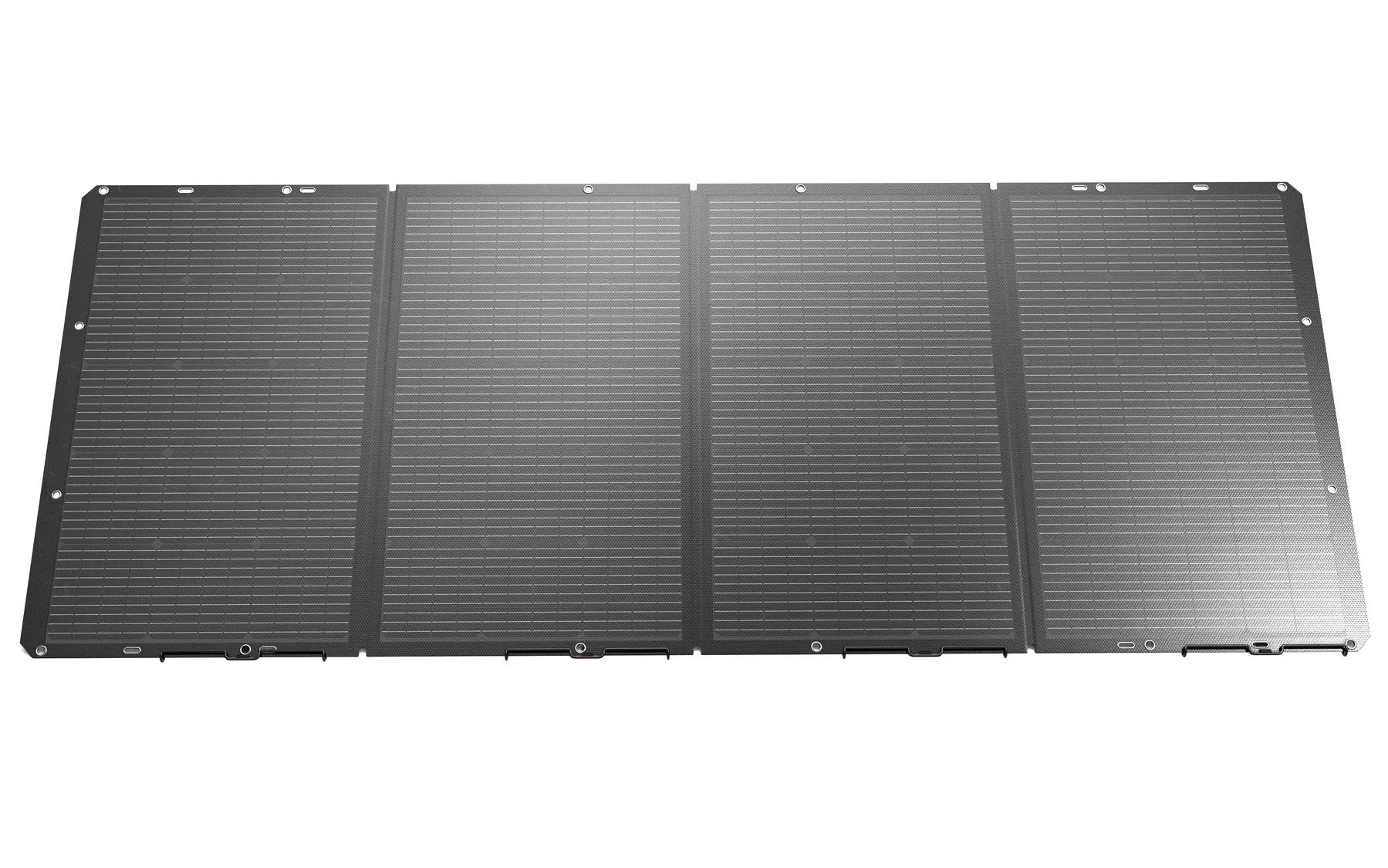

Mango Power Ultra-Light Portable Solar Panel - 400W

Maximum Power. Tactical Durability. Minimal Weight.

Stop lugging around heavy, rigid glass panels. The Mango Power 400W Ultra-Light Portable Solar Panel is engineered for serious off-grid mobility, delivering a massive 400W of charging capacity while weighing 35% less than standard portable panels.

Crafted with cutting-edge carbon fiber materials and premium Monocrystalline silicon cells, it boasts an elite 23% conversion efficiency. Encased in a rugged, IP67 waterproof chassis that has survived brutal drop, bend, and heavy-pressure testing, this 17.2 lb powerhouse is ready for anything. It is the ultimate lightweight charging solution for RVs, marine applications, off-grid cabins, and emergency home backup setups.

🌞 Perfect For:

• Camping & Overlanding: Generates clean power for extended off-grid adventures.
• RV & Van Life: A highly portable solar charging solution for van conversions and roof arrays.
• Emergency Backup Power: Supplies crucial solar energy during extended grid power outages.
• Off-Grid Cabins: Supports small off-grid energy systems and lighting.
• Remote Job Sites: Powers electronics and tools at remote worksites and outdoor events.
• Marine Applications: Suitable for portable charging aboard boats and docks.

Product Highlights

• Carbon Fiber & Stress-Tested Durability: Built to endure the harshest conditions. Mango Power integrated cutting-edge carbon fiber materials to marry extreme flexibility with structural strength. The panel has passed rigorous drop, bend, impact, and heavy-pressure tests to ensure dependable performance for years.

• Ultra-Lightweight 17.2 lb Design: Don't break your back setting up camp. Weighing 35% less than typical 400W portable panels, it folds down smoothly into a compact carrying profile, making it effortless to transport and deploy.

• Elite 23% Sun-to-Power Efficiency: Maximize your daylight hours. Built with top-tier Monocrystalline silicon, this panel boasts an industry-leading 23% conversion rate, generating more electricity per square foot.

• IP67 All-Weather Rating: The hermetically sealed construction makes this panel fully dustproof and waterproof, operating stably in extreme temperatures from -4°F to 140°F (-20°C to 60°C).
• Quick Connect MC4 Interface: Equipped with standard MC4 Quick Connectors, this panel integrates seamlessly with the Mango Power ecosystem as well as almost any third-party portable power station or off-grid battery bank.

• Optimized for Mango Power E (Up to 6 Panels): The Mango Power E requires a 60V-150V solar input. Connect a minimum of 2 panels in series to activate charging, or scale up your array to 4 or even 6 panels (using parallel cables) to max out the system's massive 2000W input capacity.

Specifications

📦 What's Included

• Mango Power 400W Ultra-Light Portable Solar Panel (x1)
• Official User Manual (x1)

Feature	Specification
Maximum Power Output (Pmax)	400W
Conversion Efficiency	23%
Cell Architecture	Monocrystalline Silicon
Net Weight	7.8 kg (17.2 lbs) ±5%
Open-Circuit Voltage (Voc)	40.8V
Short-Circuit Current (Isc)	12.36A
Max Load Voltage (Vmp)	32.4V
Max Load Current (Imp)	11.7A
Operating Temperature	-20°C to 60°C (-4°F to 140°F)
Connection Interface	MC4 (Quick Connect)
Dimensions (Unfolded)	2460 × 970 mm ±5% (96.85 × 38.19 in ±5%)
Dimensions (Folded)	972 × 620 × 65 mm ±5% (38.27 × 24.41 × 2.56 in ±5%)
Durability Rating	IP67 (Waterproof & Dustproof)
Manufacturer Warranty	18 Months

FAQs

What devices can this solar panel charge?

It is designed to charge compatible portable power stations, battery systems, and solar generators using its universal MC4 output connector.

How do I connect this to my Mango Power E?

Because the Mango Power E requires a minimum input voltage of 60V, you must connect a minimum of two 400W panels in series. You can build out massive off-grid arrays by connecting 2, 4, or 6 panels using a combination of series and parallel cables (parallel cables are included with the Mango Power E accessories list).

Is the panel waterproof?

Yes. It features an IP67 waterproof rating, making it perfectly suitable for outdoor use in heavy rain and dusty environments.

Can I leave the panel outdoors permanently?

While it is weather-resistant, built with carbon fiber, and designed for outdoor use, it is recommended to store the portable panel properly when not in active use to maximize its lifespan.

How portable is the panel?

Despite its massive 400W output, the panel is approximately 35% lighter than many comparable portable solar panels on the market. It folds into a compact form factor for easy transport in RVs, trucks, or vans.
